★1、拋雪機可與滑移快速掛裝連接。
snow thrower can be connected with sliding quick hanging.
2、拋雪機最大輸出功率 45kw
The maximum output power of the snow thrower is 45 kW
★3、除雪寬度 2130 mm，高度920mm
snow removal width 2130 mm, height 920 mm
★4、螺旋集雪器直徑630mm
spiral snow collector diameter 630 mm
5、葉片拋雪轉子直徑 644 mm
The diameter of the blade snow throwing rotor is 644 mm
6、拋雪能力 600 m3/h
Snow throwing ability600 m3/h.
★7、拋雪距離 15m
the distance of snow throwing is 15 m
★8、拋雪高度 3790 mm
snow throwing height 3790 mm
9、拋雪筒旋轉角度 270，拋雪筒旋轉由鏈條傳動
The rotation angle of the snow thrower is 270, and the rotation of the snow thrower is driven by the chain
10、作業速度：0～12 km/h
Working speed: 0 ∼ 12 km/h. 0 ∼ 12 km/h
11、最低作業溫度：40～--40℃
Minimum operating temperature: 40 ∼ −40 C. ∘ 40 ∼ −40 ∘C
12、鏤空螺旋葉片結構，有效避免集雪過程中出現的異物纏繞及卡阻等故障現象。
The hollow spiral blade structure effectively avoids the failure phenomenon such as foreign matter entanglement and jamming in the snow collection process.
13、大直徑雙螺旋輸送方式，輸送均勻，動力系統受力平衡，輸送量大。
Large-diameter double screw conveying mode, uniform conveying, balanced power system force, large throughput.
14、齒狀螺旋葉片邊緣，有效破碎地面冰層及長期堆積造成的雪塊。
The edge of the toothed spiral blade effectively breaks the ice on the ground and the snow blocks caused by long-term accumulation.
15、集雪器兩側雙馬達同步驅動，動力強勁，性能連續穩定。
The dual motors on both sides of the snow collector are driven synchronously, with strong power and continuous and stable performance.
16、具有扭矩超載保護，扭矩超載則限載螺釘斷裂，集雪器與馬達斷開，防止馬達及集雪器轉軸損壞。
It has torque overload protection, and if the torque is overloaded, the load-limiting screw will break, and the snow collector and motor will be disconnected to prevent damage to the motor and snow collector shaft.

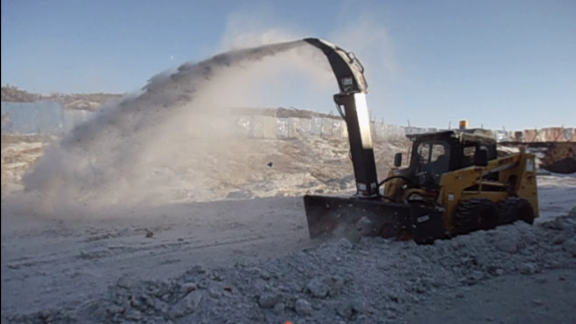

產品描述--拋雪機Product Description - Snow thrower
完美的冬季清雪工具
The perfect winter snow clearing tool
拋雪機是用於冬季清雪的完美工具。可以清理車道，人行道，或者那些滑移才能工作的狹小空間裏的積雪。可調節高度的支撐腳可定位鏟鬥的高度防止其碰到砂礫和破壞地面的攤鋪表層。通過附件控制裝置，操作者可以坐在座位上就可輕鬆通過液壓實現這些功能。根據型號不同，最遠可以將雪拋出15m遠。可選裝裝車導管，便於裝車作業。
Snow throwers are the perfect tool for snow removal in winter. Snow can be cleared from driveways, sidewalks, or small spaces that can only be slid to work. Heightadjustable support feet position the height of the bucket to prevent it from hitting grit and damaging the paved surface of the ground. With accessory controls, these functions can be easily implemented hydraulically from the seat of the author. Depending on the model, snow can be thrown up to 15 m away. Optional loading conduit is easy to load.

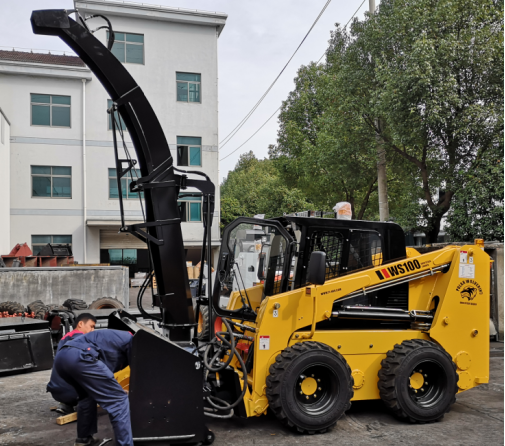

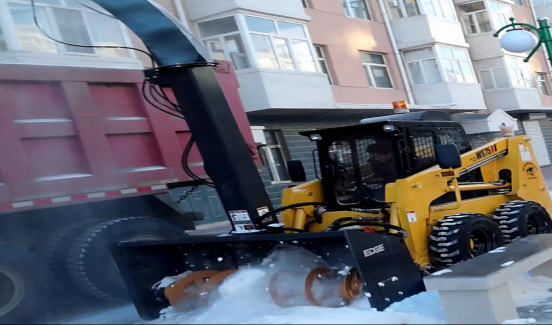

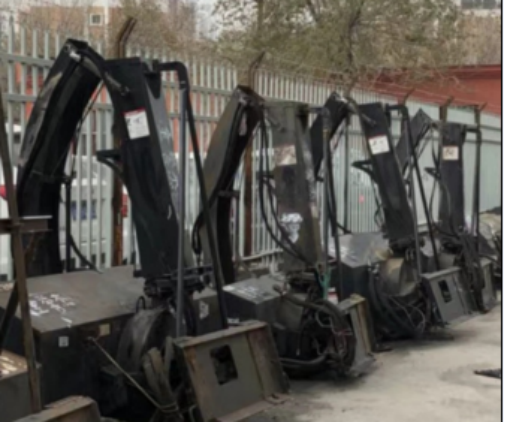

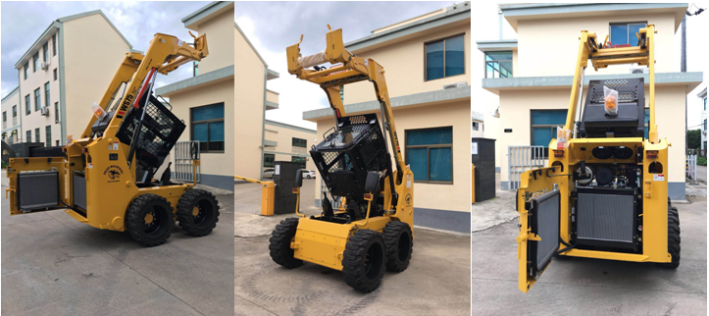

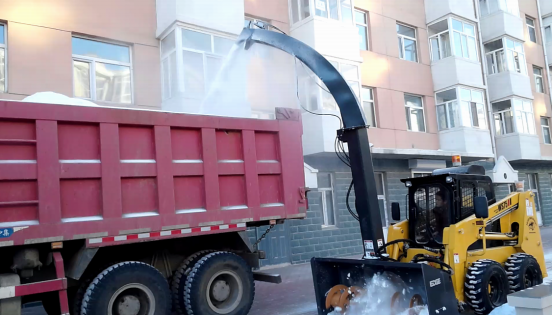

實物照片Physical photos

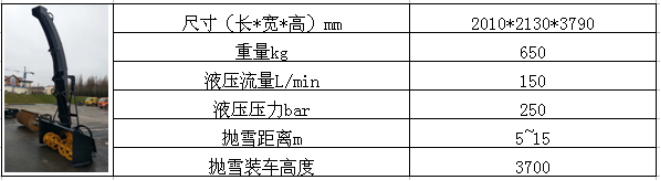

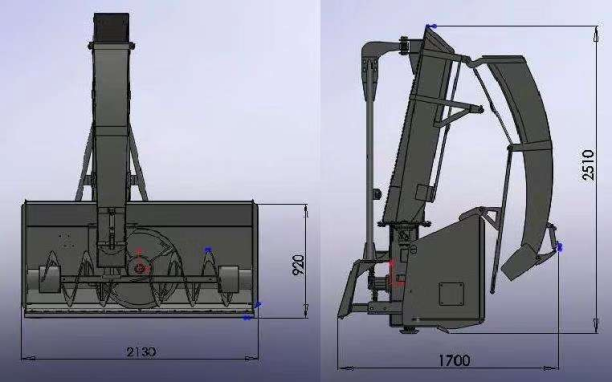

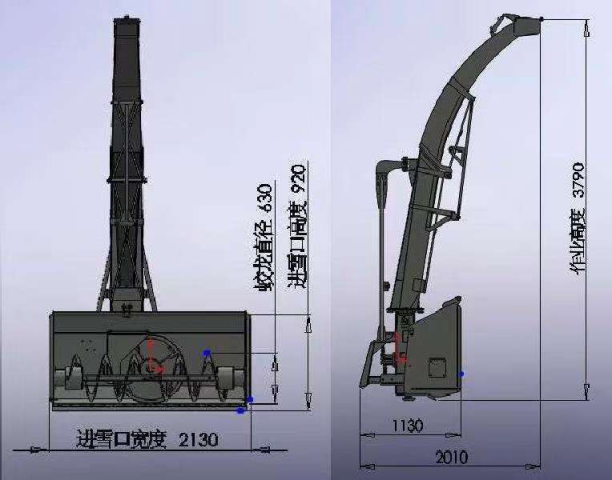

測量圖片Measurement picture
樣本
POLAR
WOLVERINE
怡泰克機械有限公司
E-Tech Machine Limited(Hongkong)
滑移轉向裝載機 輪式裝載機 挖掘裝載機 小型滑移裝載機
Sliding Steering Loader, Wheel Loader, Excavator Loader, Mini Sliding Loader
WS50 WS60 WS65 WS75 WS85 WS100
滑移轉向裝載機slip-steer loader

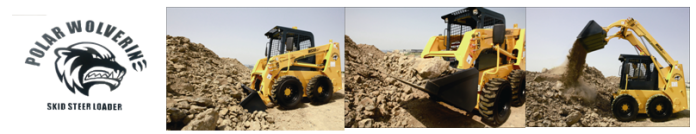

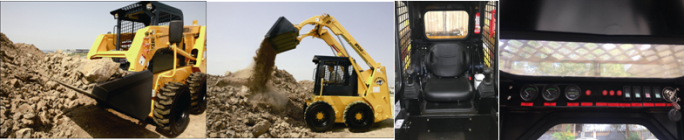

北極狼獾滑移裝載機在現場
Arctic wolverine skid-steer loader on site
怡泰克機械，專注於小型工程機械20多年，卓越的產品性能及優質的服務，受到國內外用戶、代理商的廣泛好評。同時，怡泰克機械也必將以更加出色的產品，更完善的服務來回饋一直支持我們的合作夥伴。怡泰克機械歡迎各國新老朋友、行業友人來參觀、與泰亨共謀雙贏合作。
E-Tech Machine has been dedicated to small construction machinery for over 20 years, with outstanding product performance and excellent service, receiving widespread acclaim from domestic and international users and agents. At the same time, E-Tech Machine will certainly continue to offer even better products and more comprehensive services to回馈 our long-term supporting partners. E-Tech Machine welcomes new and old friends from all countries, as well as industry peers, to visit and explore win-win cooperation with Taiheng.

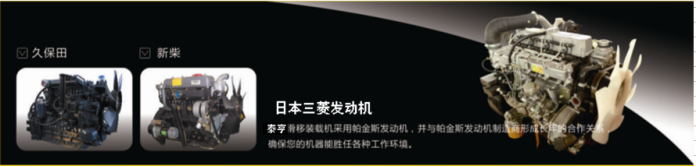

滑移裝載機強勁的動力The powerful engine of the skid-steer loader

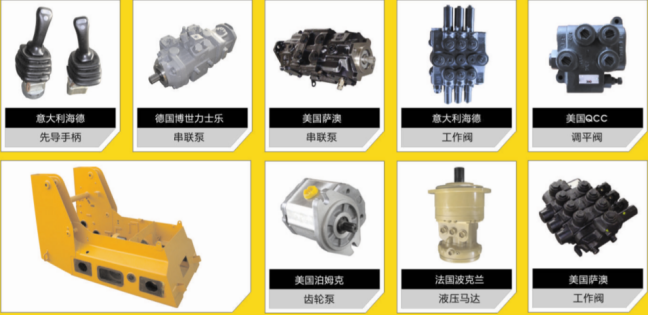

完美的液壓系統和堅固耐用的結構件
A perfect hydraulic system and robust, durable structural components

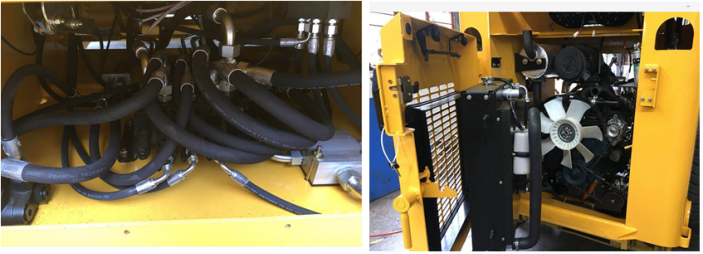

怡泰克機械滑移裝載機的維護和保養Maintenance and care of E-Tech Machine skid steer loaders
泰亨滑移裝載機的維護保養是十分便捷的。
The maintenance and upkeep of the E-Tech Machine is very convenient.
只要打開後尾罩、上罩、提高大臂、掀起駕駛室，您就能完成包括發動機在內的所有檢查及填注工作，並能維護篩檢程式和電瓶，尾罩、大臂、駕駛室配有安全支撐，徹底解決安全隱患。與其它品牌滑移裝載機不同，泰亨滑移可以有效的利用維護的時間，而非浪費在打開並接近維護和保養點上。
Once you open the rear cover, top cover, raise the boom, and lift the cab, you can complete all inspections and refills, including the engine, as well as maintain filters and batteries. The rear cover, boom, and cab come with safety supports, completely eliminating safety hazards. Unlike other brand skid-steer loaders, Taihang skid-steers effectively utilize maintenance time rather than wasting it on opening and accessing maintenance and service points.
|
參數 paramete |
單位unit | WS50 | WS60 | WS65 | WS75 | WS85 | WS100 | ||||
|
額定載荷 rated load |
kg | 750 | 800 | 900 | 950 | 1050 | 1250 | ||||
|
傾覆載荷 overturning load |
kg | 1500 | 1600 | 1800 | 1900 | 2100 | 2500 | ||||
|
操作重量 operating weight |
kg | 3000 | 3000 | 3300 | 3300 | 3500 | 3800 | ||||
|
鏟鬥容量 bucket capacity |
m³ | 0.41 | 0.41 | 0.41 | 0.56 | 0.56 | 0.56 | ||||
| 動力系統power system |
品牌brand |
新柴new charcoal | 新柴new charcoal | 三菱Mitsubishi | 三菱Mitsubishi | 三菱Mitsubishi | 久保田Kubota | ||||
| 帕金斯Perkins | 濰柴Weichai | 濰柴Weichai | |||||||||
| 輸出功率output power | HP/kw | 36.8 | 45 | 47 | 55 | 62 | 67.7 | ||||
| 35.7 | 45 | 74.9 | |||||||||
| 轉速rotational speed | rpm | 2650 | 2500 | 2500 | 2500 | 2500 | 2400 | ||||
|
冷卻方式cooling method |
水冷water-cooled | 水冷water-cooled | 水冷water-cooled | 水冷water-cooled | 水冷water-cooled | 水冷water-cooled | |||||
|
柴油箱容量diesel tank capacity |
L | 88 | 88 | 88 | 88 | 100 | 100 | ||||
| 性能參數performance parameters |
操作方式operation mode |
機械 machinery | 機械machinery | 機械machinery | 機械machinery | 機械machinery | 機械machinery | ||||
| 液控liquid control | 液控liquid control | 液控liquid control | 液控liquid control | 液控liquid control | 液控liquid control | ||||||
|
舉升方式lifting method |
徑向 radial |
徑向 radial |
徑向 radial |
徑向 radial |
徑向 radial |
徑向 radial |
|||||
|
輪胎標準tire standard |
10-16.5 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | |||||
|
最大行駛速度maximum travel speed |
km | 12 | 12 | 12 | 13 | 13 | 13/20 | ||||
|
液壓參數 Hydraulic parameters |
工作流量working flow |
L/min | 66 | 66 | 75 | 82/132 | 82/132 | 82/140 | |||
|
工作壓力working pressure |
bar | 210 | 210 | 230 | 230 | 230 | 230 | ||||
|
液壓油箱容量hydraulic tank capacity |
L | 70 | 70 | 70 | 70 | 70 | 70 | ||||

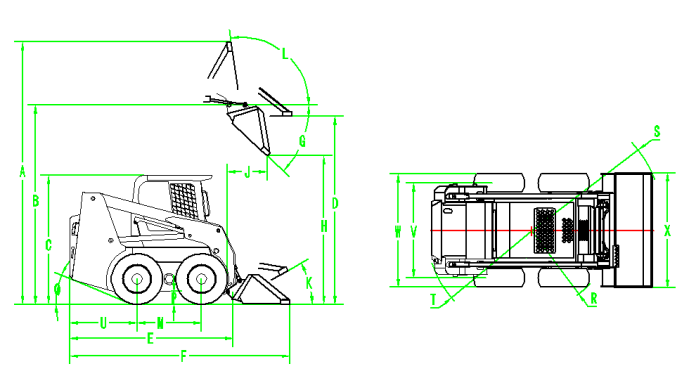

| A | 最大操作高度maximum operating height | mm | 4058 | 4058 | 4270 | 4270 | 4295 | 4295 | |||
| B | 鏟鬥鉸接銷高度Bucket hinge pin height | mm | 3077 | 3077 | 3269 | 3269 | 3290 | 3290 | |||
| C |
不帶空調頂部高度without air conditioning on top |
mm | 2007 | 2007 | 2023 | 2023 | 2023 | 2023 | |||
| C |
帶空調頂部高度 air-conditioned top height |
mm | 2177 | 2177 | 2200 | 2200 | 2023 | 2023 | |||
| D |
鏟鬥底部最大水平高度Maximum horizontal height at the bottom of the bucket |
mm | 2908 | 2908 | 3090 | 3090 | 3116 | 3116 | |||
| E |
不帶鏟鬥長度Without bucket length |
mm | 2700 | 2700 | 2710 | 2710 | 2889 | 2889 | |||
| F |
帶鏟鬥長度bucket length |
mm | 3413 | 3413 | 3433 | 3433 | 3688 | 3688 | |||
| H |
最大卸載高度maximum unloading height |
mm | 2303 | 2303 | 2551 | 2551 | 2543 | 2543 | |||
| J |
卸載距離 uninstall distance |
mm | 675 | 675 | 603 | 603 | 652 | 652 | |||
| M |
軸距Dump distance Wheelbase |
mm | 999 | 999 | 1050 | 1050 | 1200 | 1200 | |||
| Q | 離去角Departure angle | 度angle | 23° | 23° | 22° | 22° | 24° | 24° | |||
| P | 離地間隙Ground clearance | mm | 185 | 185 | 202 | 202 | 202 | 202 | |||
| W |
輪胎邊緣寬度Width of tire edge |
mm | 1740 | 1740 | 1817 | 1817 | 1817 | 1817 | |||
| X |
鏟鬥邊緣寬度Width of bucket edge |
mm | 1800 | 1800 | 1880 | 1880 | 1880 | 1880 | |||
| L |
鏟鬥最高收鬥角度Maximum lift angle of the bucket |
度angle | 99° | 99° | 99° | 99° | 99° | 99° | |||
| G | 卸載角（最大高度）Dump angle (at maximum height) | 度angle | 38° | 38° | 38° | 38° | 38° | 38° | |||

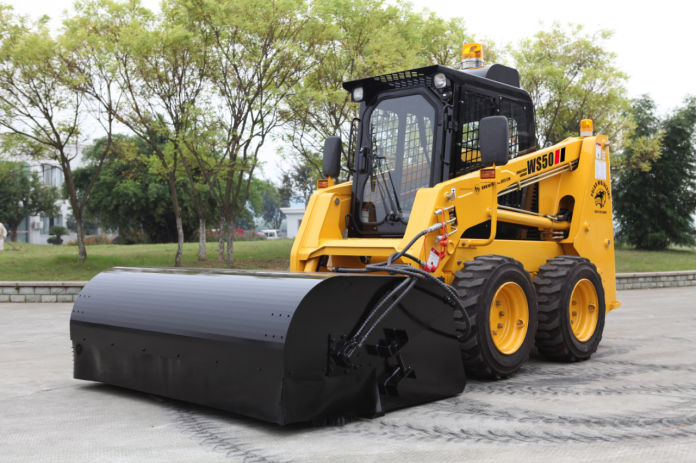

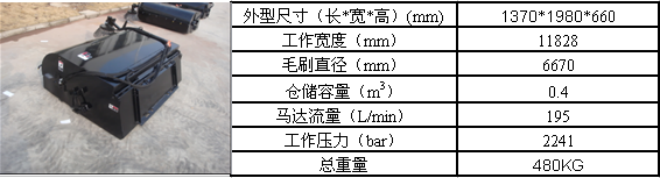

封閉式清掃器Closed-loop cleaner

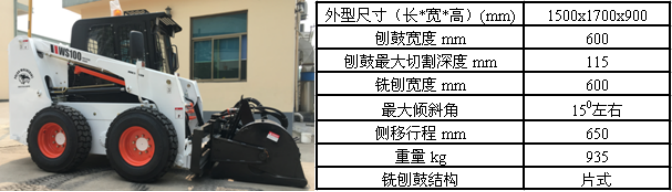

銑刨器Milling Machine

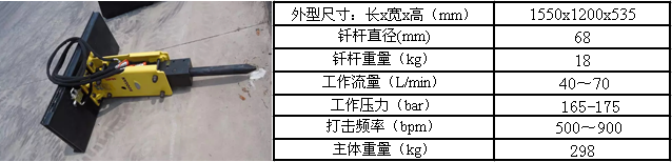

破碎錘QuarteringHammer

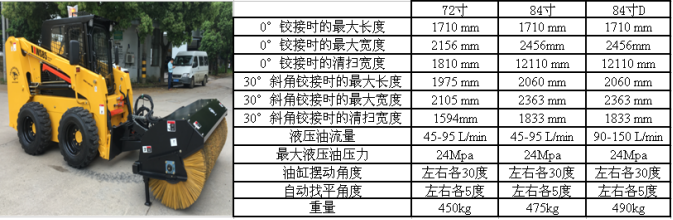

斜角清掃器（雪刷）Angled snow brush
折疊或高低雙用拋雪器(選配)Foldable or dual-use snow blower (optional)

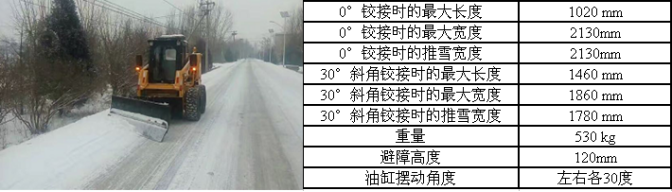

推雪鏟Snow Shovel

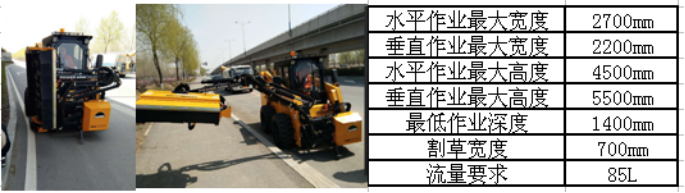

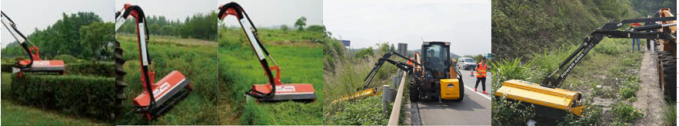

長臂割草機Long-arm Lawn Mower
企業證書Business Certificate
售後服務
AFTER-SALE SERVICE
怡泰克的客戶服務是一個以客戶為中心，以高效率、全過程為運作定位，以服務的情感化、規範化、特色化為努力方向的具有強力競爭力的服務系統，公司在產品售前、售中和售後各個環節的軟體、硬體建設方面，追求持續改善。在服務資訊化建設方面，公司推行CRM客戶關係管理系統，建設統一客戶關係管理平臺，為客戶資源、市場研究、銷售流程，客戶服務的管理尋求最佳運作方式，運用科學分析方法，記錄完整服務過程，為企業降低成本和提高客戶滿意度提供全面的解決之道。在服務硬體設施建設方面，公司規劃“全球服務配送中心”，此中心作為泰亨公司客戶服務平臺，包括客戶服務培訓中心、備品備件配發中心等，為全球服務提供硬體設施和物流保障。
品質保證：品質上按照統一標準生產和檢測，符合圖紙要求，與原裝整機零部件同等品質。統一經銷泰亨重工系列產品所有純正零配件，在全國各地實行統一價格銷售，以維護怡泰克用戶和廣大消費者的利益。
Yitaike's customer service system is centered around the customer, operating with high efficiency and throughout the entire process. It strives for emotional, standardized, and distinctive service, making it highly competitive. The company continuously improves software and hardware aspects in all stages of product pre-sales, sales, and after-sales services. In terms of informatization construction, the company implements a CRM customer relationship management system, building a unified customer relationship management platform to seek optimal operational methods for managing customer resources, market research, sales processes, and customer service. By using scientific analysis methods, it records the complete service process, providing comprehensive solutions to reduce costs and increase customer satisfaction for enterprises. In terms of hardware facility construction, the company plans a 'Global Service Distribution Center,' which serves as Yitaike's customer service platform, including a customer service training center and spare parts distribution center, providing hardware facilities and logistics support for global services.
Quality Assurance: Products are produced and inspected according to uniform standards, meeting drawing requirements, and having the same quality as original whole machine parts. All genuine
