(Market sales price is RMB75,800.00)
1. Lighthouse height: 9m.
2. Shape of the lamp body: the lamp shape of the lamp body is cylindrical.
3. Fixed lamp body: the lamp body assembly will be fixed at the base of the car body (the hard plastic structure should have a professional collection packing box).
★ 4. Heat dissipation fan: The lamp post heat dissipation adopts a high-performance high-voltage double-layer fan design (a test report with stable performance is required). And set up the anti-mosquito entry protection device.
5. Light body structure: steel wire mesh skeleton structure or other structure protective bulb.
6. Light-emitting body lampshade: the ball lamp fabric structure must have, rain prevention, sunscreen, good light transmittance, with anti-dazzle, anti-aging, strong toughness and other characteristics.
7. Protection of lamp structure: when the lamp is in non-working state, the protective cover shall be provided on the lamp body for protection; when the lamp is in working state, the protective cover is hidden on the top of the lamp body (the hard plastic structure should be equipped with stored wooden packing box).
8. Environmental protection design: the top of the cylindrical lamp cloth is a silver reflective design.
★ 9. Light number: 3 x 1,000 w metal halide lamp.
10. Lighting control: 3 bulbs are set for switch and manual control.
★ 11. Optical flux: 330,000 Lm.
12. Irradiation area: effective illumination of ≥20 Lx, coverage area of ≥5000 ㎡.
13. Vertical rod structure and protection: the vertical rod is a manual mechanical lifting or hydraulic lifting, and the vertical rod can rotate 360°. The top of the vertical pole is equipped with a three-way fixed wind-resistant device, and the wind resistance reaches 8 or above.
14. Loading and unloading Settings: forklift holes and special lifting points are configured to facilitate the loading and unloading when using other transportation equipment.
15. Towing structure: traction towing walk; the towing rod can be removed.
★ 16. Axle shock absorption: use rubber torsion shaft with upper and lower, left and right multidirection shock absorption function; torsion shaft split fixed structure (there must be clear photos).
17. Work support: not less than 4 fixed spiral screw supports.
★ 18. Tire: Use type 185 / R14 or perform better than type 185 / R14 off-road tires.
19. Hub: use ≥3mm thick off-road hub.
20. Whole machine color: the whole machine is white, electrostatic spraying.
21. Generator: electric start, maximum output power of 5.0KVA.
22. Rated voltage and frequency: 220v, 50Hz.
23. Cooling mode: air-cooled or water-cooled.
★ 24. Use of fuel oil: diesel oil.
25. Fuel tank capacity: 100L.
★ 26. Working time: ≥30 hours of continuous working time.
27 Warning function: a safety warning light is provided in the obvious position of the box.

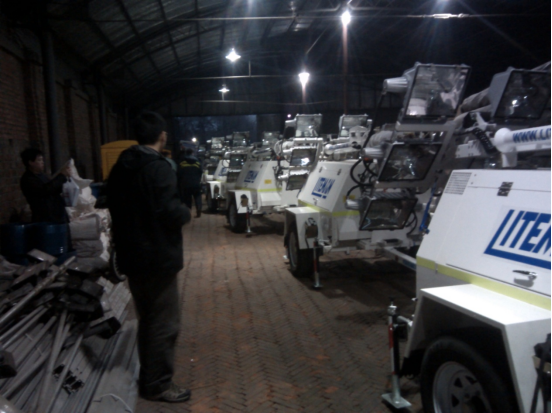

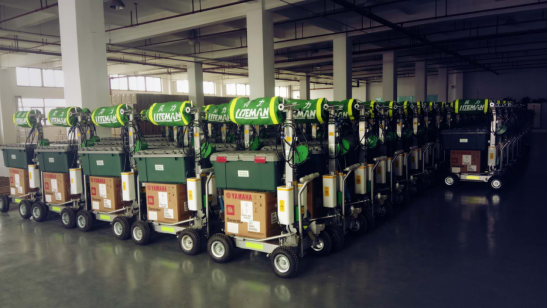

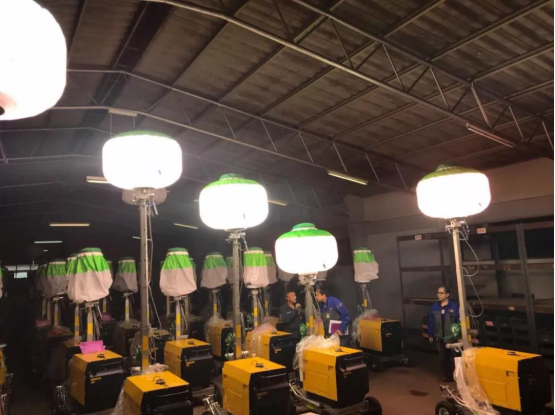

● Usage Status of Domestic and Foreign Users:

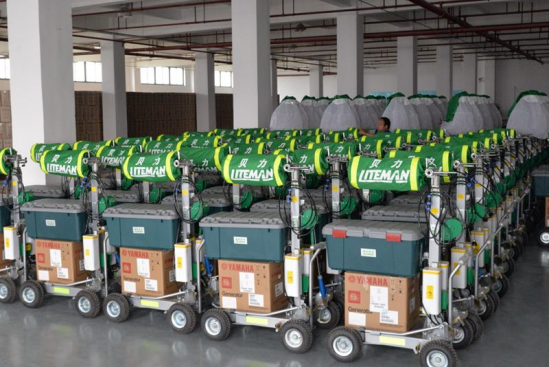

Liaoning Provincial Emergency Department Early Reserve Ball Lighthouse:

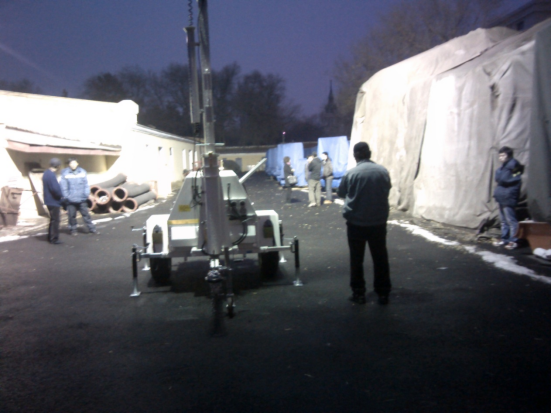

Beijing Municipal Emergency Management Bureau Reserve Lights:

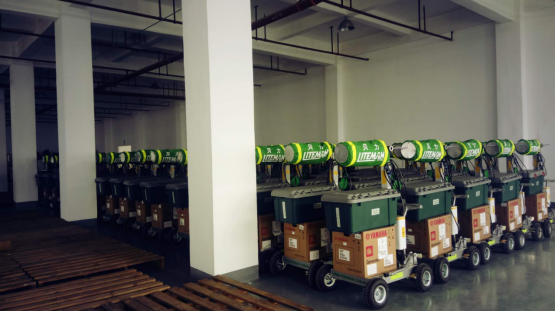

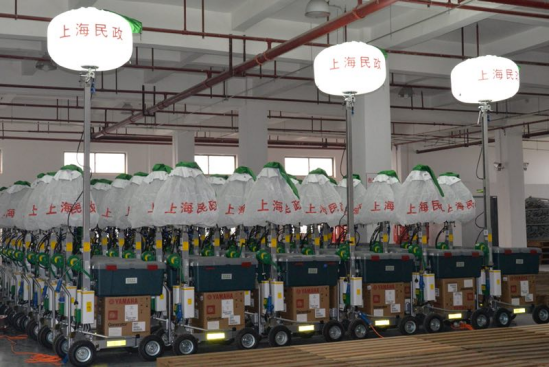

Shanghai Emergency Management Bureau:

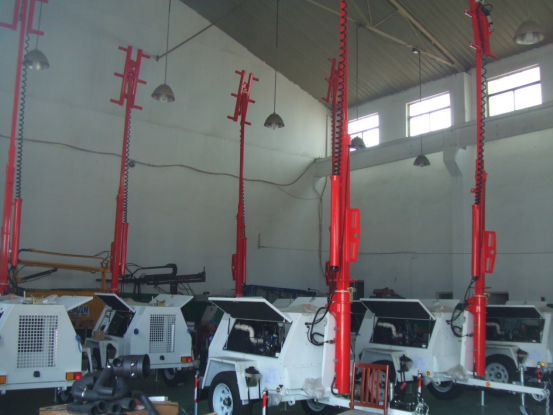

Heilongjiang Provincial Emergency Department prevention Office PB1600THW Hydraulic Lighting lighthouse:

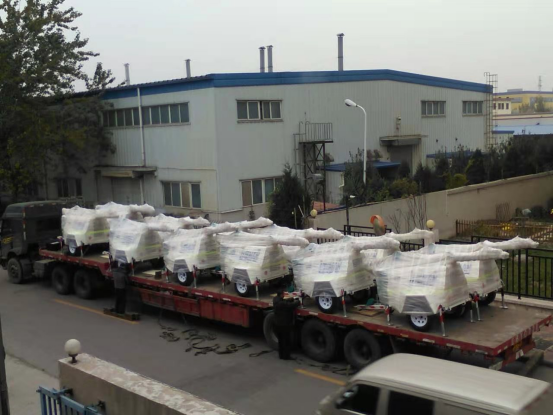

Xi'an Emergency Management Bureau of Shaanxi Province:

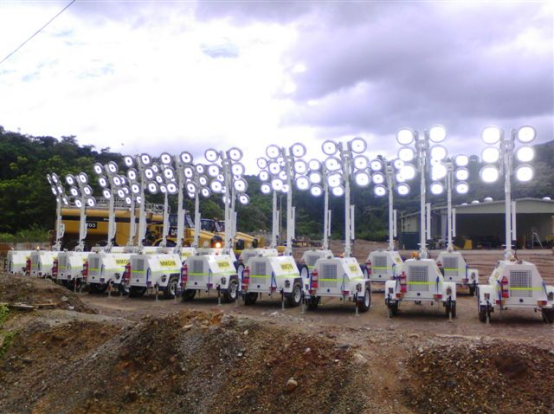

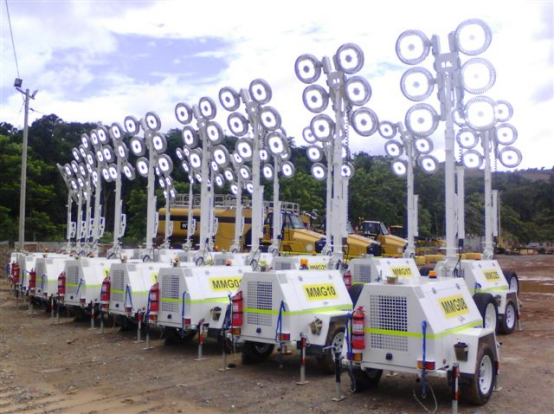

Export to Australian Gold Mining LED Hanging Lighting Lighthouse:

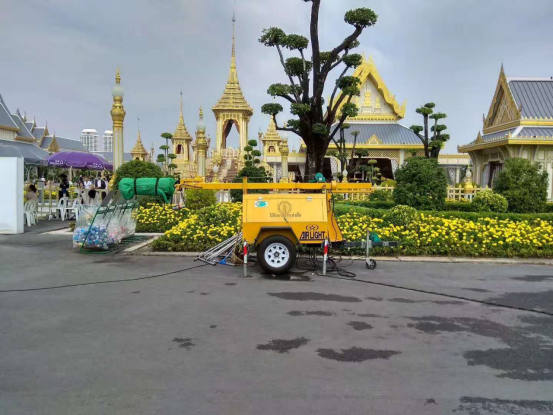

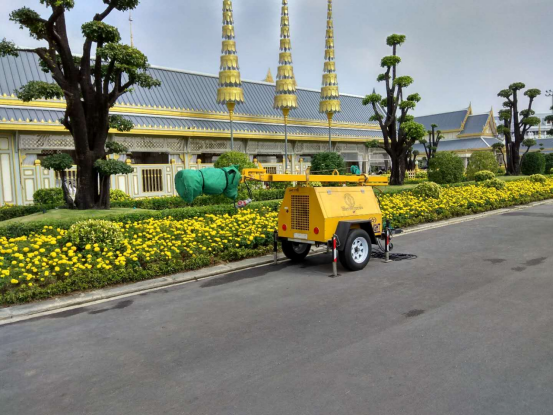

Lighting lamp Used by the Royal Thai Police:
